Bandsaw Vertical Horizontal Bandsaw Double Channel Teeth Cutting Machine

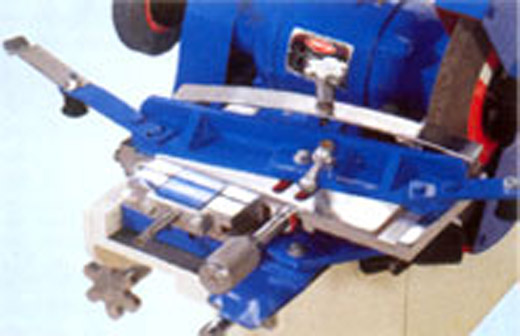

Automatic Band-Saw Blade Grinder

New Max Life Series with imported bearing system

Specification
  1. Ele, motor : 1HP, 2880 RAM, 3 phase OR 1 phase.
  2. Grinding wheel size : (i) 12"*1/2" (Coarse)
    (ii) 6"*1" (Coarse)
  3. Capacity : 1" to 3" width, 2 T.P.I
  4. Sharpening speed : 90 to 95 teeth per mnt.
  5. Weight : 115 Kgs. (Approx)
  6. Adjustable stand for various size of blade. Specially formulated nylon rollers.



Wooden Log Puller

Features :
  1. An idea machine for unloading the wooden logs from truck or trailer with minimum men power.
  2. Easy and safe device for stacking a bunch of wooden logs or removing a selected log from the lot. Useful for mounting of log and swanslab on trolley.
  3. Machine with rotational turn table. Maximum utility in all direction.

Specification :

  1. Capacity : 10 M. Tons.
  2. Ele. Motor : 5 H.P, 3 Phase, 1440 RPM, Heavy Duty.
  3. Wire rope : 14 m.m. Tested, 150 feet length.
  4. Weight : 325 Kgs. approx.
  5. "V" belt driven.
  6. Oil bath warm-gear type.
  7. Latest Clutch system : For release the wire rope without use of Ele. Motor.
